Ready-to-use electrically-powered hydraulic power units are designed to control 1-8 actuators (e.g. hydraulic cylinders or hydraulic motors). The series includes models with maximum power outputs 2.2, and 4 kW.
Specifications
- Up to 28 lpm of continuous flow
- Up to 230 bar of continuous pressure

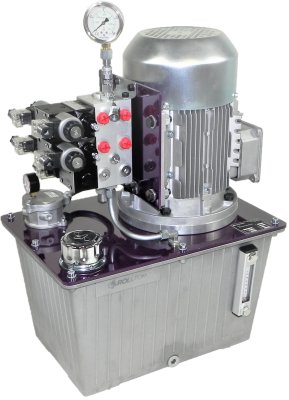

The HS00389 series HPU's are entry level medium-sized units equipped with everything what is needed to effectively incorporate the unit in your machines or production lines. All the building components are of well-know brands, are being tested, and quality controlled. But the components themselves are not enough. Precisely designed and dimensioned machine rewards with stability and durability of work.
The HPU's are generally interchangeable with other projects. It is equipped with simpler versions of gauges and control instruments to keep favourable pricetag.
Features
- Pumps' Displacements: 4.2 - 19.6 cm³/rev
- Maximum Pressure: 250 bar (continuous)
- Maximum Power: 2.2, and 4 kW with 3-phase, 400 V electric motor
- Fluid: Hydraulic mineral-based oil
- Pressure gauge
- Hydraulic fluid level indicator
- Oil cooler ready
- Oil filter clogging visual indicator
Advantages
- Designed for robustness and durability
- Can be equipped with proportional, and/or ON-OFF valves
- Manufactured in Europe
- Ready to dispatch within a few days
Applications
Hydraulic Power Unit HS00389 series are ideal for use in applications requiring high force or high torque. It can serve as main machine's power unit or as just the working horse for the most force or torque demanding functions.
